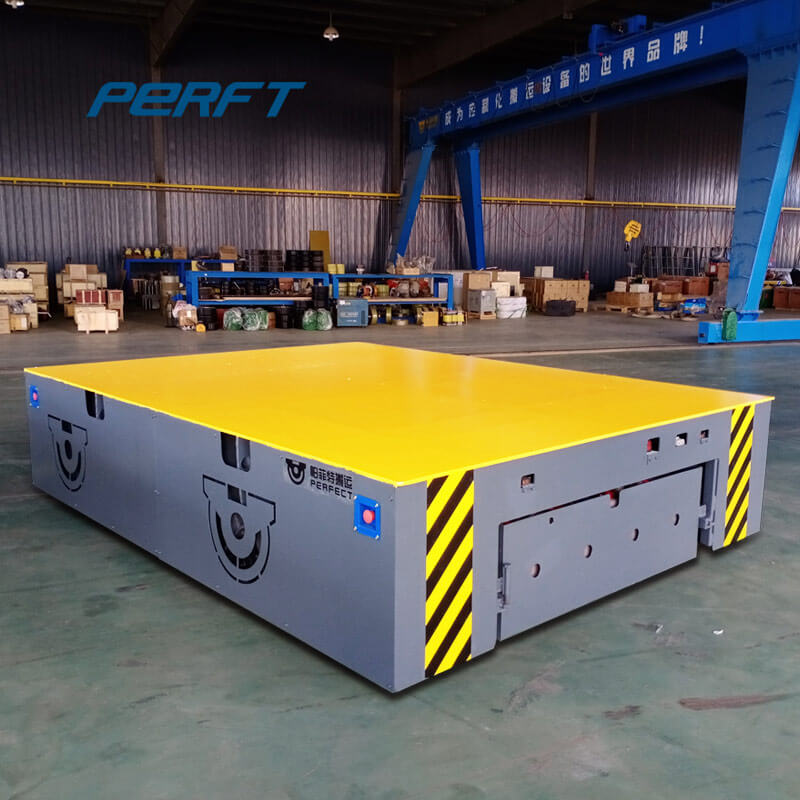

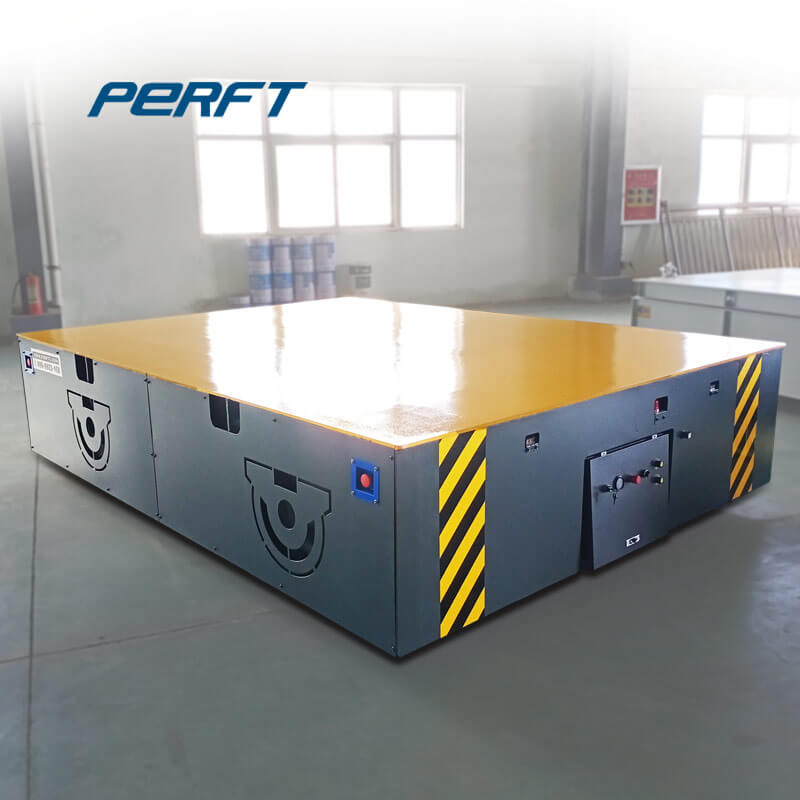

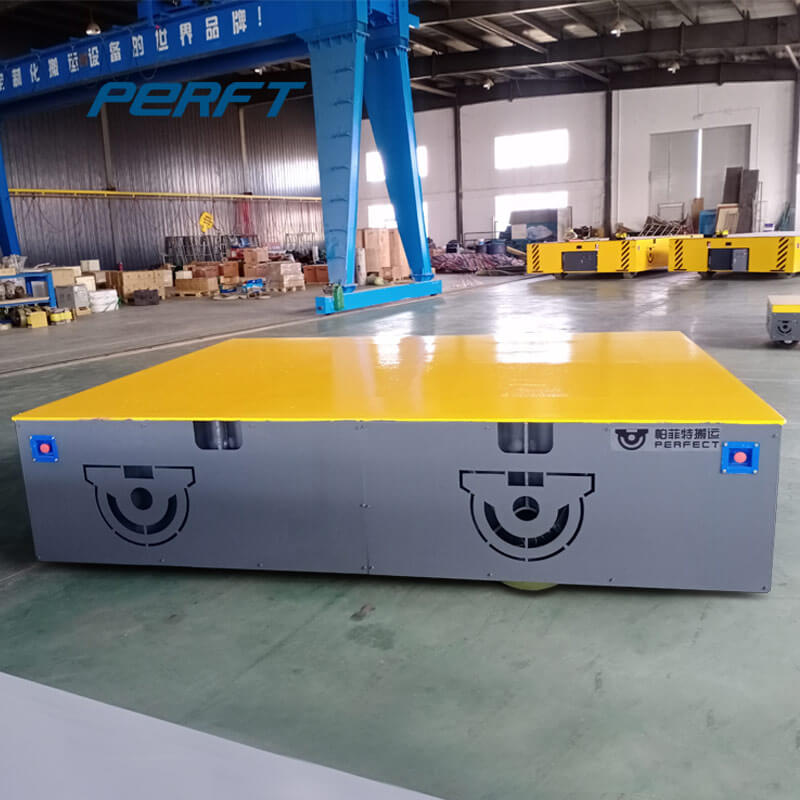

Steerable Electric Trackless Transfer Vehicle Industrial Tugger Carts
Position :
Home » Products » TRANSFER CART ON WHEELS » Omnidirectional Mobile Trackless Vehicle » Steerable Electric Trackless Transfer Vehicle Industrial Tugger Carts
Steerable Electric Trackless Transfer Vehicle Industrial Tugger Carts
Steerable Electric Trackless Transfer Vehicle Industrial Tugger Carts
Steerable Electric Trackless Transfer Vehicle Industrial Tugger Carts

Steerable Electric Trackless Transfer Vehicle Industrial Tugger Carts

Steerable electric trackless transfer vehicle industrial tugger carts are used to move molds, coils or materials between the press room and the mold storage and maintenance area. The advantage of t...
Introduction

Steerable electric trackless transfer vehicle industrial tugger carts are used to move molds, coils or materials between the press room and the mold storage and maintenance area. The advantage of this kind of Steerable electric trackless transfer vehicle industrial tugger carts is that the entire length of the manufacturing facility can be moved, where the mold moved by the crane is limited by the travel distance of the crane, or must be transferred from the crane bracket to the crane bracket. Our standard heavy-duty design is controlled by a handheld button controller with a small turning radius.



APPLICATION:

The trackless tugger carts can be used for coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mold, beam, container, heavy equipment, aluminum product, compressor, polycrystalline silicon, motor, building materials, scrap, pallet and other material transport in the factory.



Mold 5T 10T 15T 20T 30T
Rated Load(T) 5 10 15 20 30
Table Size(mm) 2500*1500 3000*2000 3200*2000 4000*2000 5000*2200
Height(mm) 600 700 750 750 800
Wheel Quantity 4 6 8 8 12
On cement floor Tire Specification 305*165 559*254 559*356 22*9-10 22*9-10
Tire Material Polyurethane Solid Wheel, Press-on Solid Tire, Air Tire
On rail Rail Inner Gauge(mm) 1200 1435
Wheel Material LD steel wheel, Angel box wheel
Frame Material Q235 Q345
Color Customized
Speed(km/h) 0-20 0-15
